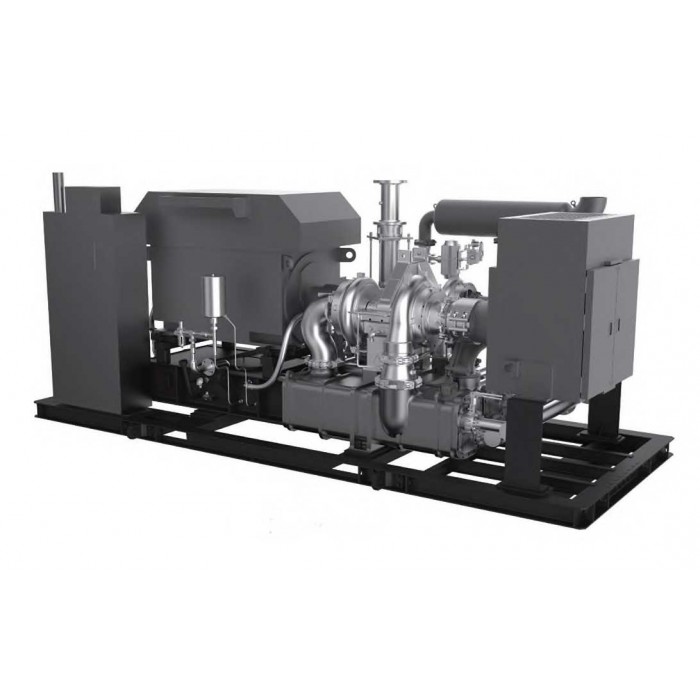

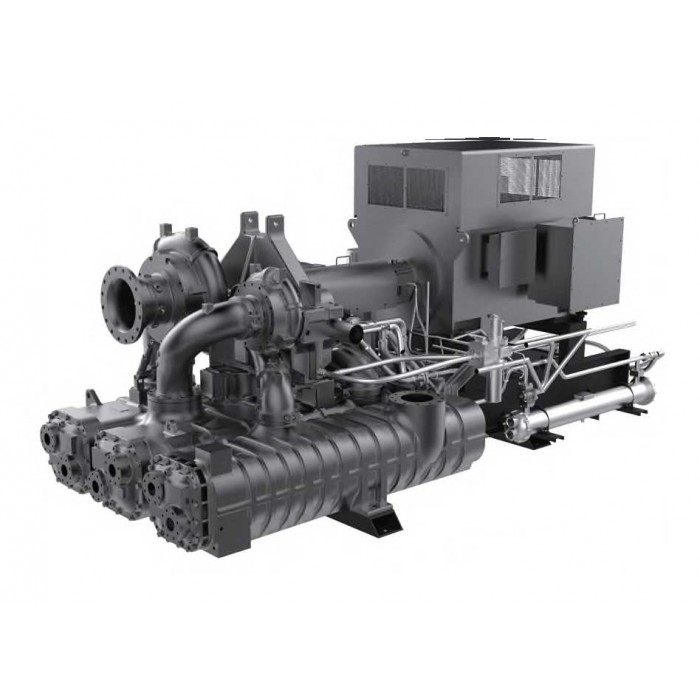

Hanwha SM6000 turbo compressor

Description Hanwha SM6000 turbo compressor

The SM series model from Hanwha Power Systems is a highly efficient industrial centrifugal compressor designed for a wide range of industrial applications.
The SM6000 model delivers an airflow capacity ranging from 15.000 to 21.000 m³/h with an outlet pressure of 3,5 to 25 bar. Thanks to optimized components and overspeed testing up to 115%, the SM showcases exceptional reliability and durability. Its compact design simplifies installation and maintenance, while various customization options allow it to be tailored to individual needs.

These compressors are ideal for use in energy production, chemical and petrochemical industries, and manufacturing processes. The SM series is renowned for its energy efficiency, reducing operational costs, and compliance with international quality standards, making it a trusted choice for companies seeking modern air compression solutions.

Key Features

• ISO 8573‑1 Class 0 oil‑free air
• Compact skid‑mounted design
• Customized options tailored to customer requirements
• High-efficiency inlet guide vanes for reduced power consumption
• Smooth centrifugal operation with reduced maintenance

Advantages

• Exceptional performance with optimized  components
• Precisely designed and balanced components and 115% over-speed test for reliability
• Easy installation and maintenance
• Various options are available considering each customer’s needs



Compressor output

Hanwha (formerly Samsung) SM/SM 100 series turbo compressors are leaders in energy efficiency and reliability. The compressors are suitable as base load or regulating machines, with a regulation range of up to 50%.

Completely oil-free compressed air

The compressed air produced by the turbo compressor is completely oil-free and meets ISO8573-1 Class 0 requirements. The compressor's lifecycle costs are low due to the efficient components and minimal maintenance needs. When properly maintained, the compressors' energy efficiency does not deteriorate even after years of use.

Advanced efficiency and performance through design modification

• Thrust collar applied to enhance operation reliability and mechanical efficiency by reducing mechanical loss and oil consumption
• Labyrinth seal of non-contacting type minimizing mechanical loss and needs of replacement
• Reduced distance between shafts to minimize oil mist friction and mechanical loss for improved performance and isothermal efficiency

Oil-free turbo compressors produce oil-free compressed air that meets ISO 8573-1 Class 0 requirements. Suitable as base load machines or control units, with a regulation range of up to 50%. Their energy efficiency does not decline even after years of operation.

Features:

• High stability and operational reliability
• High-quality air compression system designed in accordance with API 672
• Wide range of options
• High compatibility and versatility of spare parts
• Quick response thanks to the compatibility of consumables across all models (minimizing downtime)
