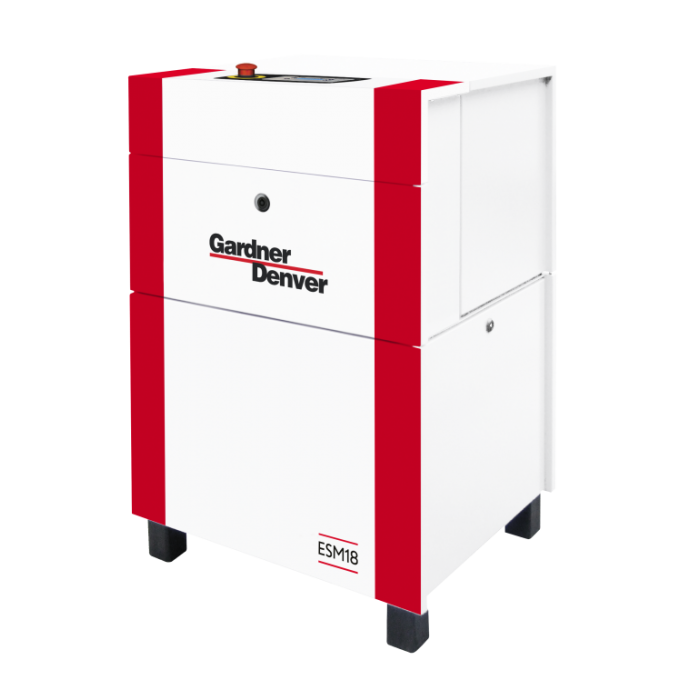

Screw air compressor Gardner Denver ESM15 A349058011

Description Screw air compressor Gardner Denver ESM15 A349058011

Known in the industry for quality and reliability, Gardner Denver compressors constantly evolve to achieve advanced performance and efficiency indicators. The ESM/VS 15-22 series includes models with fixed speed and variable speed (VS), available as a full package with receiver and dryer.

Engineering Excellence

Compressors are more than a financial investment; they are a key component for providing manufacturers, processors, and operators with stable, high-quality compressed air at low cost.

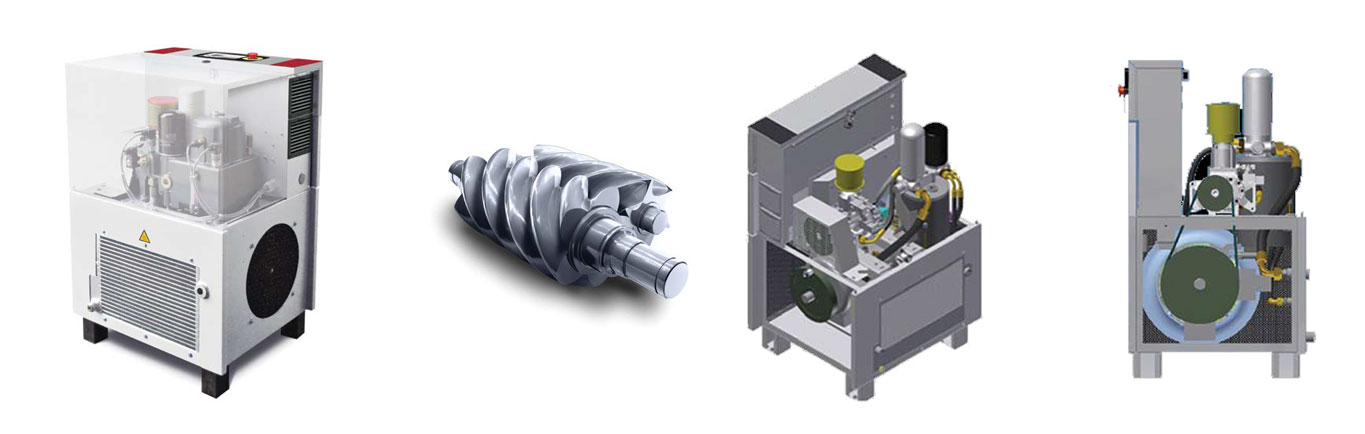

Screw Compressor Element

The screw compressor element is the heart of the compressor, so Gardner Denver keeps design and production in-house, using the most modern CNC rotor grinding machines and online laser technology. The result is reliability and performance that ensure low operational costs throughout the entire compressor service life.

Protect 10 Warranty

Under the free Protect 10 warranty, air elements are covered for up to 44,000 hours or 10 years (whichever comes first).

Design Concept

Reliability and Flexibility

Fully integrated air element. The progressive design of the high-efficiency air element allows operation at low speeds, reducing energy costs. The innovative integrated design, including oil separation, oil filter, and thermostatic valve, reduces the number of external hoses and components, ensuring excellent reliability.

Combined Air/Oil Cooler

Equipped with a bypass for quick warm-up and oil temperature control, which reduces wear, eliminates condensate in the compressor system, and ensures low exhaust air temperature.

High-Efficiency Electric Motor

Compressors are equipped with an energy-saving IE3 electric motor.

Automatic Belt Tension System

The maintenance-free system provides automatic and precise belt tension, extending its service life.

Factory Lubricant Filling

Reduces maintenance costs by extending the oil replacement interval to 4000 hours.

Low Noise Level

Allows the compressor to be placed directly at the point of use.

Operation at High Temperatures

Reliable operation even at ambient temperatures up to 45°C.

Control System

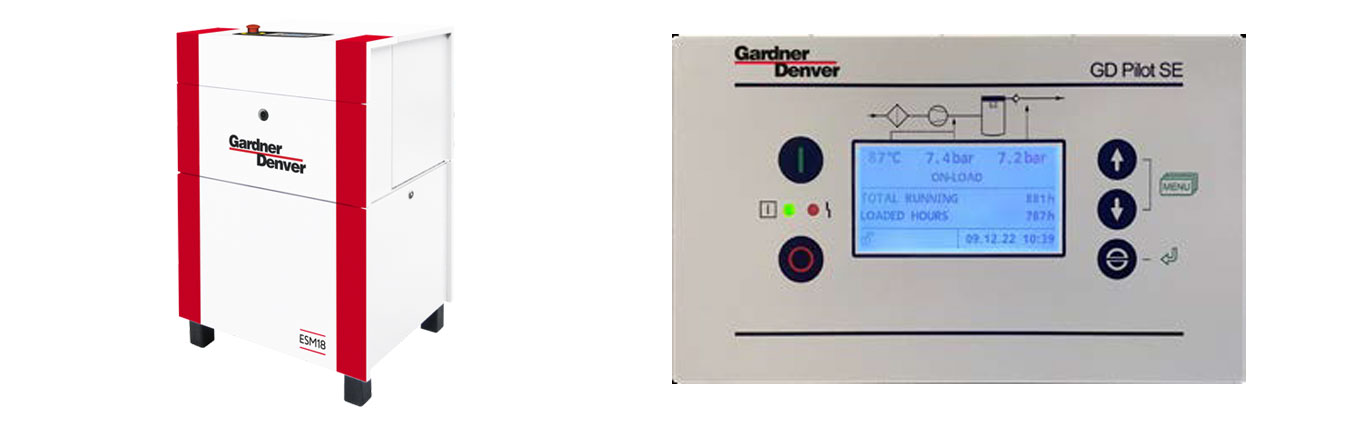

Modern GD Pilot SE Control System

The GD Pilot SE control system ensures reliable operation and protects investments through constant monitoring of operational parameters.

The "GD PILOT SE" controller offers programmable inputs and outputs, control of additional equipment, and provides the following functions with clear text on a 2.8-inch graphic display with a modern user interface:

• Display of exhaust/line pressure
• Display of oil temperature
• Total operating hours and hours under load
• Service indicator
• Enhanced error log monitoring
• Real-time clock
• Timer for stop/start control
• Remote stop/start
• Automatic restart after power failure
• Second pressure setting
• Status indication
• RS485 - Modbus RTU
• Micro-SD card for recording emergencies and data
• Integrated BLS functionality and built-in Light web server
• Via or with an optional module for RS485 and Ethernet connection

Ergonomic Controller Positioning

The controller can be placed on the top or front of the compressor.

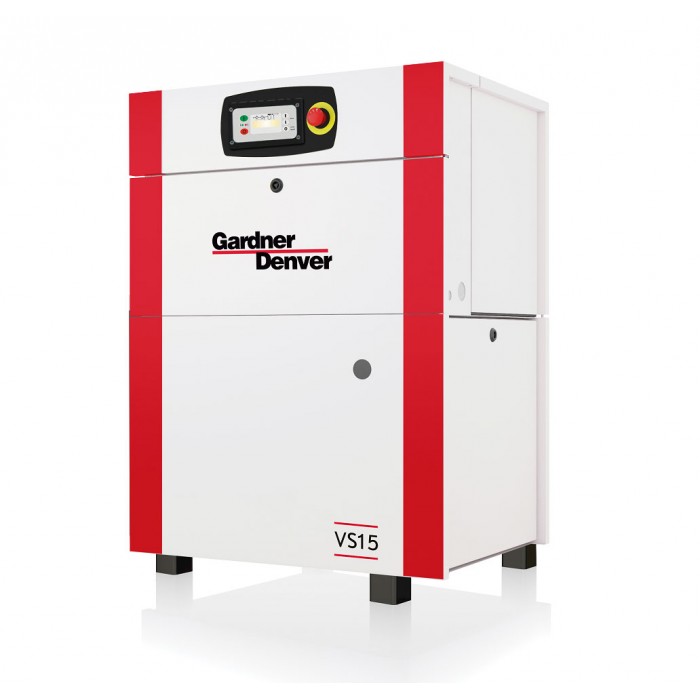

Variable Speed Compressors

Ideal Response to Demand

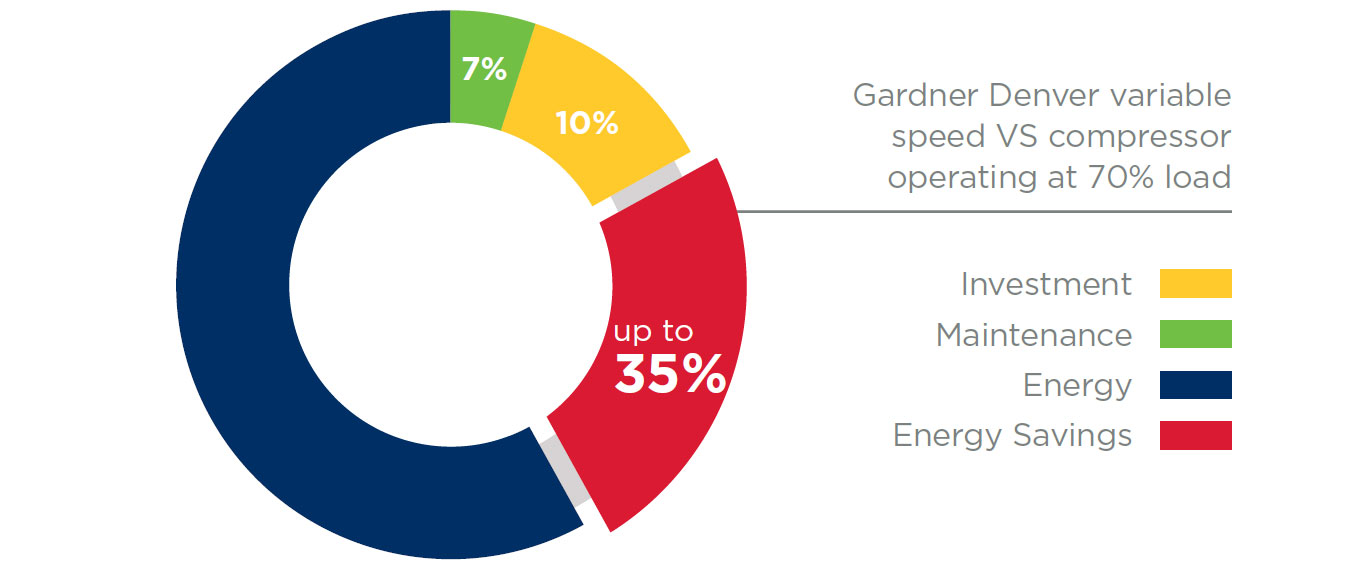

Variable speed compressors from Gardner Denver effectively and reliably handle variable air demand, typical for most compressed air systems in factories. Annual ownership costs can be significantly reduced using variable speed technology.

Proven Inverter Concept

• Integrated into the electric cabinet
• Protected from dust with replaceable input filters
• Maximum reliability thanks to an optimized cooling system
• Ensures high availability and long service life

Advantages of the VS Series

Products in the VS series are designed to achieve maximum efficiency across the entire operating range:

• Wide regulation range: absence of cycles means significant energy savings
• Ideal motor, drive, and air element design: high efficiency across a wide flow range

Complete Package Solution

Gardner Denver Airstations

Gardner Denver offers complete Airstations with power from 15 to 22 kW, including compressor, dryer, and receiver. Save energy with dryers that feature a high-quality heat exchanger with low pressure losses and an energy-saving mode that turns off the dryer at low loads.

Easy Installation and Use

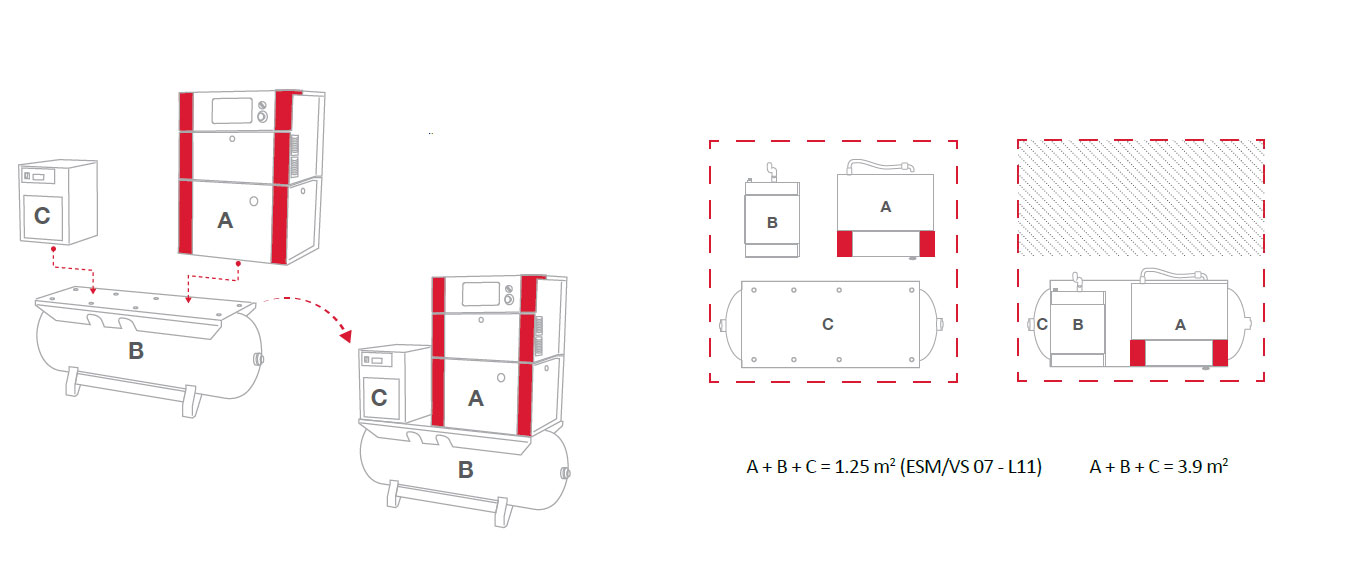

All components are perfectly matched and ready for "Plug and Play." The high-quality receiver is built to the highest standards and does not require inspection for up to five years. Installing components on the receiver reduces the required area by 55%.

Integrated Heat Recovery

All compressors are available with high-efficiency heat recovery systems, which can be factory-installed or as modernization kits, including all necessary pipes and fittings.

Compressed Air Cleaning

Air Quality Requirements

Modern production systems and processes require increasingly higher levels of air quality. The Gardner Denver compressed air system, using the latest technologies, provides an energy-efficient solution with the lowest life cycle costs.

Cleaning Components

• Water cyclone separator
• Compressed air filter
• Condensate drain system
• Refrigerant compressed air dryer
• Non-heated desiccant dryers
• Thermal regenerative desiccant dryers
• Nitrogen generator
• GD Connect 12 controllers for multiple compressors

Investment Protection

10-Year Protect 10 Warranty

Gardner Denver’s Protect 10 warranty and service programs protect you for up to 44,000 hours or 10 years. This is one of the most generous warranties in the industry, ensuring complete peace of mind.

Compact Design and Easy Installation

The small size reduces the required installation area.

Simple Maintenance

The design of these packages provides easy access to service points. Hinged and removable housing doors allow full access to all points. The reduced number of moving parts lowers maintenance costs.

Original Gardner Denver Spare Parts

Enjoy complete peace of mind. Original Gardner Denver parts and lubricants ensure the reliability and efficiency of the compressor system at the highest level. They are distinguished by:

• Long service life, even in the toughest conditions
• Minimal losses, contributing to energy savings
• High reliability, improving system uptime
• Products manufactured to the strictest quality assurance systems

Your Advantages

Warranty and Service Benefits

• The Protect 10 warranty is completely free for the compressor owner (subject to conditions)
• Authorized Gardner Denver service providers ensure guaranteed service quality
• The Protect 10 service contract allows precise budgeting and ownership cost planning
• Using original Gardner Denver parts and lubricants maximizes compressor service life and efficiency
